Vision X

The Comparison Microscope VisionX is the most powerful and effective ballistics analysis and confirmation tool in the industry.

Vision X

With years of superior optical engineering poured into the design, it provides unprecedented comfort and clarity – a difference you can feel as well as see.

  • Clear, simultaneous viewing through the binoculars or on-screen with the live camera
  • Synchronized, three-step magnification changer
  • Parafocal optical system, without refocusing
  • Centralized control unit

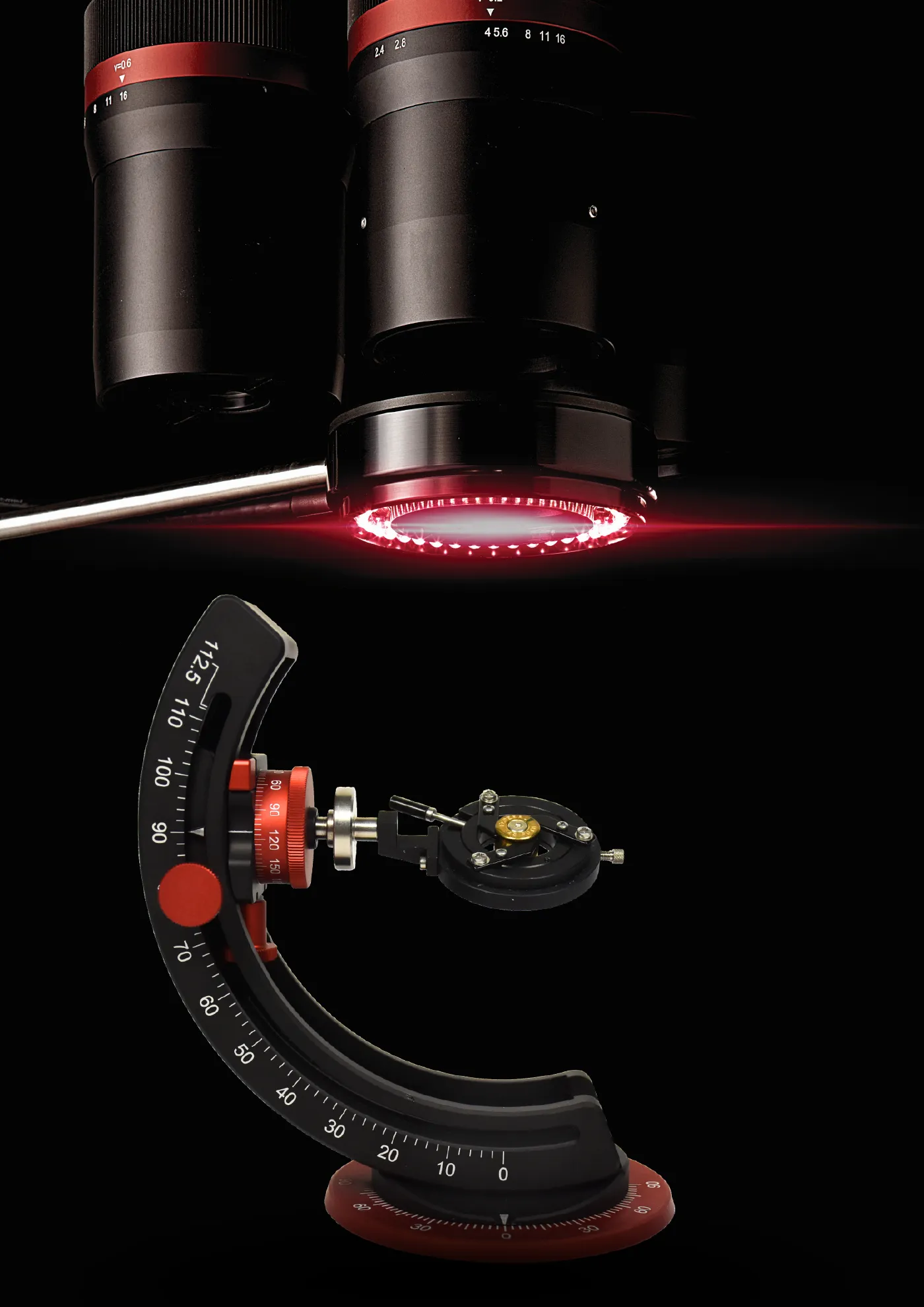

  • Various LED lighting systems, flexible arrangement
  • Motorized X/Y/Z movement, possibility of synchronizing the left and right object stages

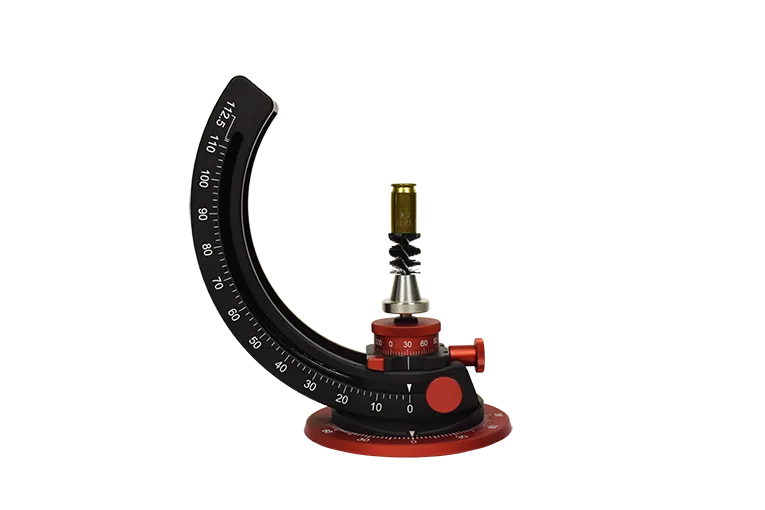

  • Easy exchange of the different object holders
  • Unmatched ergonomics thanks to adjustable binocular tube with constant 30-degree viewing angle
  • Superior stability while delivering a clear, uncluttered work area
  • Unprecedented working distance of 95-233 mm makes it easier to position the objects and handle larger items of evidence

Razor-sharp images at 1.3x to 243x magnification for unequalled documentation

Autofocus function offers unsurpassed image quality

VisionX’s unique design provides both stability and a user-friendly working environment.
VisionX
Projectina superior optics

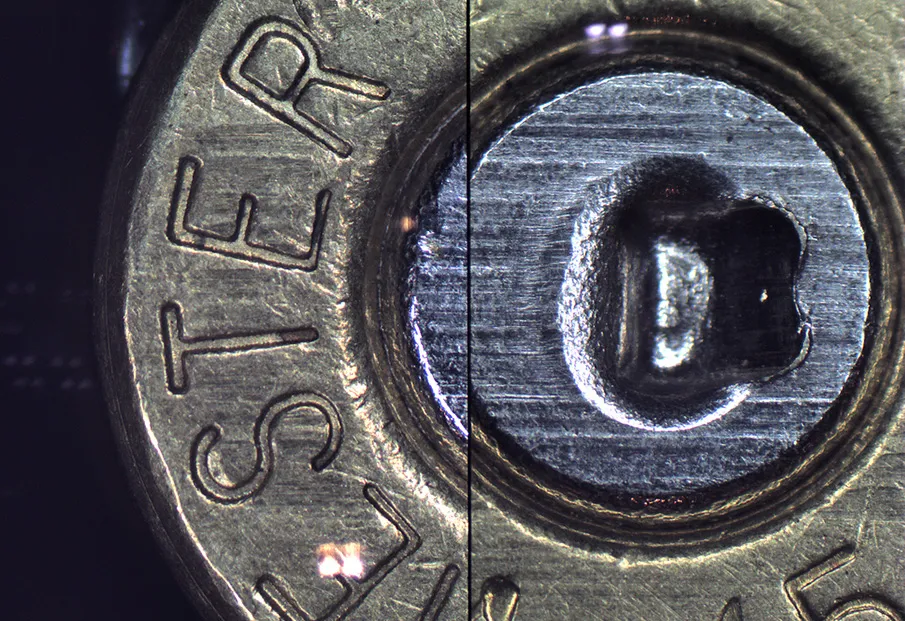

Superior Optics

Apochromatically corrected with adjustable apertures, each objective provides three fixed and precisely matched magnification levels, for optimum reproducibility at the touch of a button.

Comparison microscopes

Ergonomic Comfort

Innovative binocular design with motorized height adjustment and constant 30-degree viewing angle for optimum comfort for examiners of any height.

Projectina - fingertip control

Intuitive Control

Real-time, intuitive controls allow for synchronized or separate movements; motorized objective and magnification changer are completely synchronized and precisely matched with each other.

Product light

Optimal Lighting

A flexible, state-of-the-art illumination system that eliminates unwanted reflections and supports the consistent lighting of objects, regardless of shape, size, surface, and structure.

Technical Specifications

  • Comparison bridge with distance of optical axes of 450 mm
  • Objective 0.6x for magnification 6x, 11x, 20x, working distance: 116 mm
  • Objective 3.2x for magnification 32x, 58x, 104x, working distance: 120 mm
  • Intermediate 3 steps magnification changer
  • Ergo tube, motorized user set up and height adjustment, eye pieces 10x/22
  • Basic stand with motorized X and Y movement, travel range 50mm, motorized Z-axis column, 146 mm movement
  • System control unit with joystick and wheel operation
  • Holder for spot light and ringlight
  • LED ringlight, LED high power spotlight, controller for intensity and ringlight segment control, additional connection for 2 LED high power spot or LED shadow-free illumination
  • Tool station

Optional accessories:

  • Objective module 0.13, for magnifications 1.3x, 2.3x and 4.2x, working distance 233 mm
  • Objective module 7.5x, magnification 75x, 135x, 243x, working distance 95 mm
  • A wide range of innovative accessories, lighting options, stages, object holder, etc. is available
